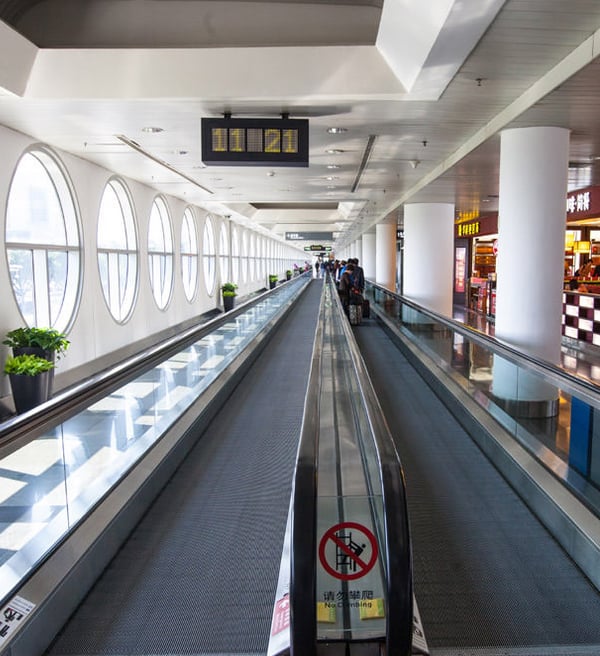

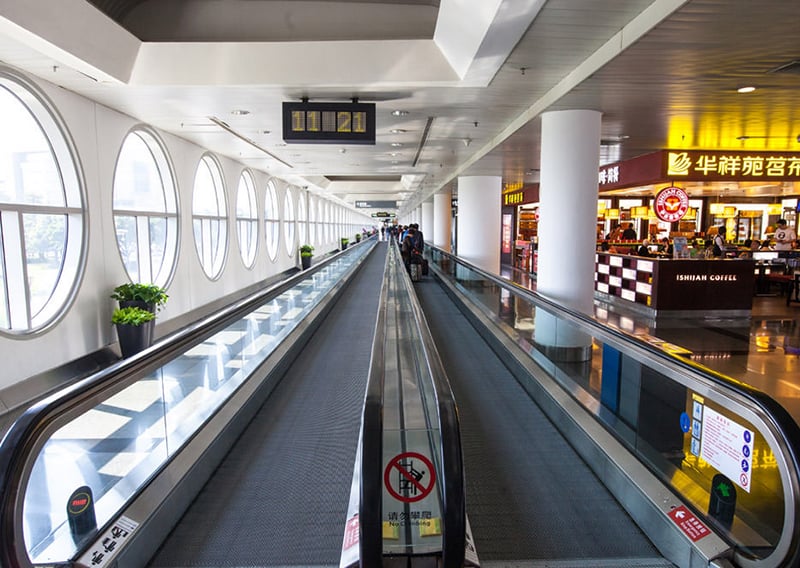

FUJI moving walks are compact in structure and flexible in adaptability, making full use of advanced manufacturing processes to greatly improve product performance and extend the overall service life, resulting in reduced operational costs for customers. The specially designed large roller handrail drive ensures low operating noise and high driving force. The unique rectangular tube structure has a strong load-bearing capacity, greatly enhancing the overall stability of the escalator operation.
0.5m/s
0°, 10°, 11°, 12°
The truss is made of top-grade rectangular steel, featuring a unique structure, high strength, and good corrosion resistance.
The large diameter step roller minimizes noise and prolongs the product's lifespan.
The user-friendly handrail entrance is secured with brushes.
The skirt panel is made of duplex stainless steel along with the inner and outer deck.
There are various options for the stamped stainless steel front panel.
The belt braking system, controlled by a brake motor, ensures smooth and reliable braking.
The super CPU motherboard monitors operations in real-time. In case of any abnormal conditions, it will automatically brake and record error codes.
Customers can choose VVVF drives to control the operating speed, significantly improving energy efficiency. It can extend the product's lifespan and reduce operational costs.

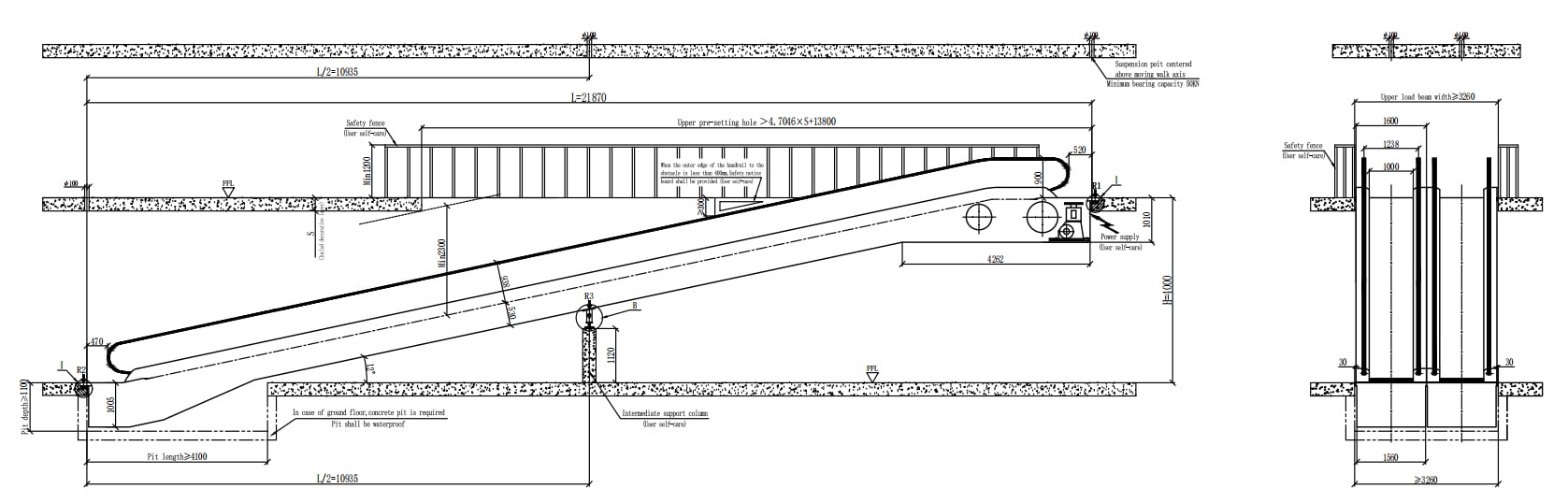

| Model | FHM | Operational environment | Indoor |
| Lifting height | 10000mm | Layout | Double |
| Pedal width | 1000mm | Horizontal span | 21870 mm |
| Angle | 12° | Transportation capacity | 6000 people/h |
| Speed | 0.5 m/s | Motor power | 11 kW |
| Reactions R1 | 60×2 kN | Power supply | 220V 60HZ 3P5L |
| Reactions R2 | 54×2 kN | Lighting supply | 110V 60HZ |
| Reactions R3 | 128×2 kN | Supporting height | 1120 mm |
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
