Designed To Tactfully Transport Goods & Tools
We produce elevators based on your need according to the size and suitability of your building.
-

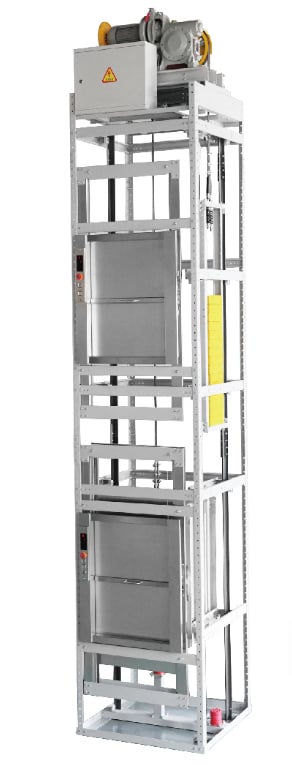

Dumbwaiter lift is compact and flexible, with a simple structure, smooth transportation and low cost. They are widely used in places such as hotels, restaurants, banks, residential buildings, hospitals, and libraries. Currently, there are two types of dumbwaiters commonly used in the market: microcomputers controlled type and PLC controlled type. They can be classified into two working modes: cabinet-style and floor-style, with speeds ranging from 0.25 m/s to 1.0 m/s.

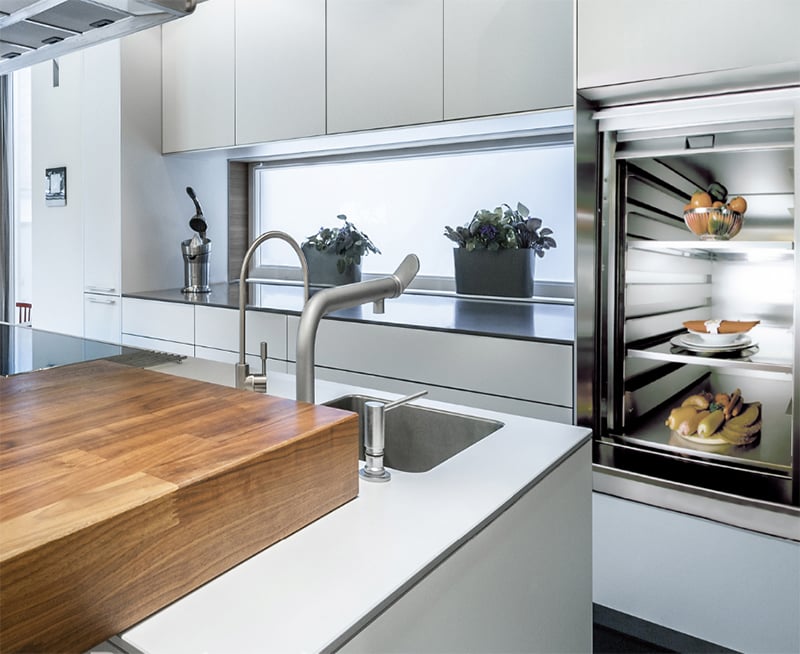

Hotels, restaurants, banks, hospitals, libraries, laboratories, and other places for transporting food, beverages, money, documents, medicines, books, instruments, etc.
Smooth start and quiet movingThe elevator adopts a current vector control frequency conversion drive system, which makes the start, acceleration, and braking smoother.
Small footprint, flexible and free, machine room structure There is no special shaft, which brings convenience to the overall layout and design of the building. Civilian wells with or without machine rooms can be selected according to structural differences to improve construction and design flexibility.
Low failure rate, easy maintenanceThe elevator uses a microcomputer control system, which has a low failure rate, is easy to maintain, and has low costs.
Low energy consumption, energy-saving, and economic The integration of mechanical and electrical components makes operation simple and flexible, and energy consumption is low, which is environmentally friendly and energy-saving.

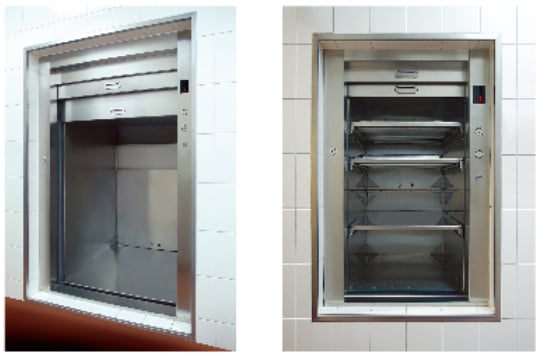

Customized modes for you Select the appropriate door opening method according to the characteristics of the goods transportation to facilitate the entry of goods.
| Load (kg) | Speed (m/s) | Door opening size (W×H) (mm) | Door opening type | Car net size (W×D) (mm) | Shaft size (mm) | ||
| (W×D) (mm) | PIT | OH | |||||
| 100 | 0.3-1.0 | 700×1000 | Up/down straight opening | 700×725 | 1250×925 | 1000 | 2500 |
| 200 | 950×1000 | 950×975 | 1500×1175 | ||||
| 250 | 1000×1200 | 1000×1000 | 1550×1200 | ||||
| 300 | |||||||
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
Freight elevators are designed to transport heavy or large goods, with a focus on enhanced durability, greater load-bearing capacity, and larger usable space. Service elevators are primarily used to transport light goods and personnel, typically for logistical purposes in commercial buildings and shopping malls.
A dumbwaiter elevator is a small freight elevator used to transport food and tools. It is commonly employed in high-rise buildings for the conveyance of tools and food items.
The decision to install a freight elevator or a service elevator depends on your specific requirements. If you need to transport goods and personnel, a freight elevator is generally installed; however, if the elevator will only be used for transporting goods and personnel within tall buildings, such as kitchen supplies and medical equipment, a service elevator is typically chosen.
Generally, the elevator system consists of the elevator machine room, elevator shaft, elevator car, elevator guide rails, elevator door system, elevator control system, safety system, and other components.
